Innovation doesn’t need to make products that are complex to use, and amongst Contrinex’s infrared light grid’s many advantages is they're simple to use – The DGI family of light grids ‘detect’ an object as small as 0.9mm, giving a NPN & PNP switched output. The MGI family can ‘measure’ down to a resolution of 5mm, giving two analogue outputs of 0-10V and 4-20mA. – Find out more at http://tiny.cc/CTX_Grids
A fast response time and infrared sensing provides the DGI & MGI light grids with reliable detection across a wide variety of object shapes and colours, including reflective objects, plus a high degree of immunity to interference from ambient light.

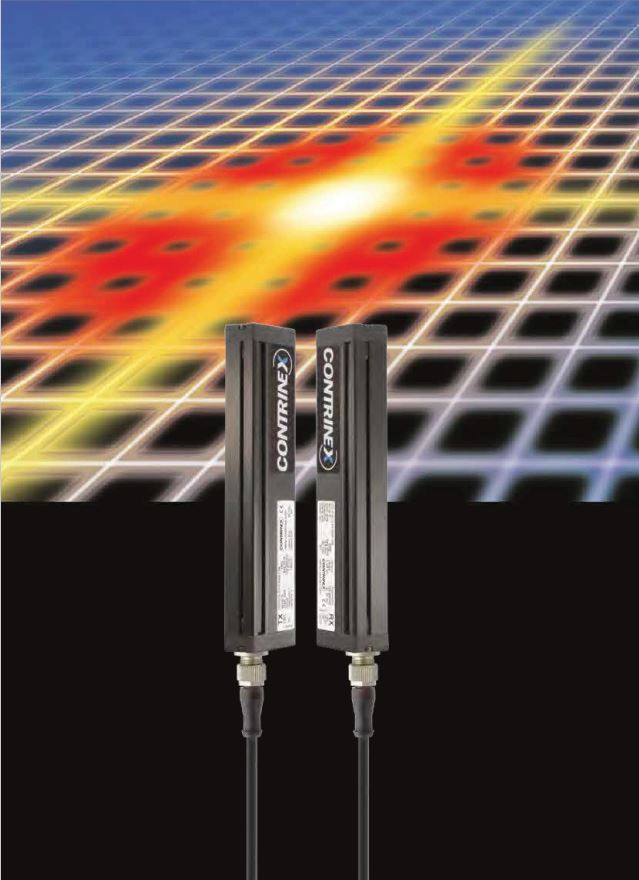

With the DGI and MGI light grids, Contrinex offers compact infrared plug-and-play sensors with a cross-section of only 40 x 20.5mm, that are fast, robust, and simple to implement.

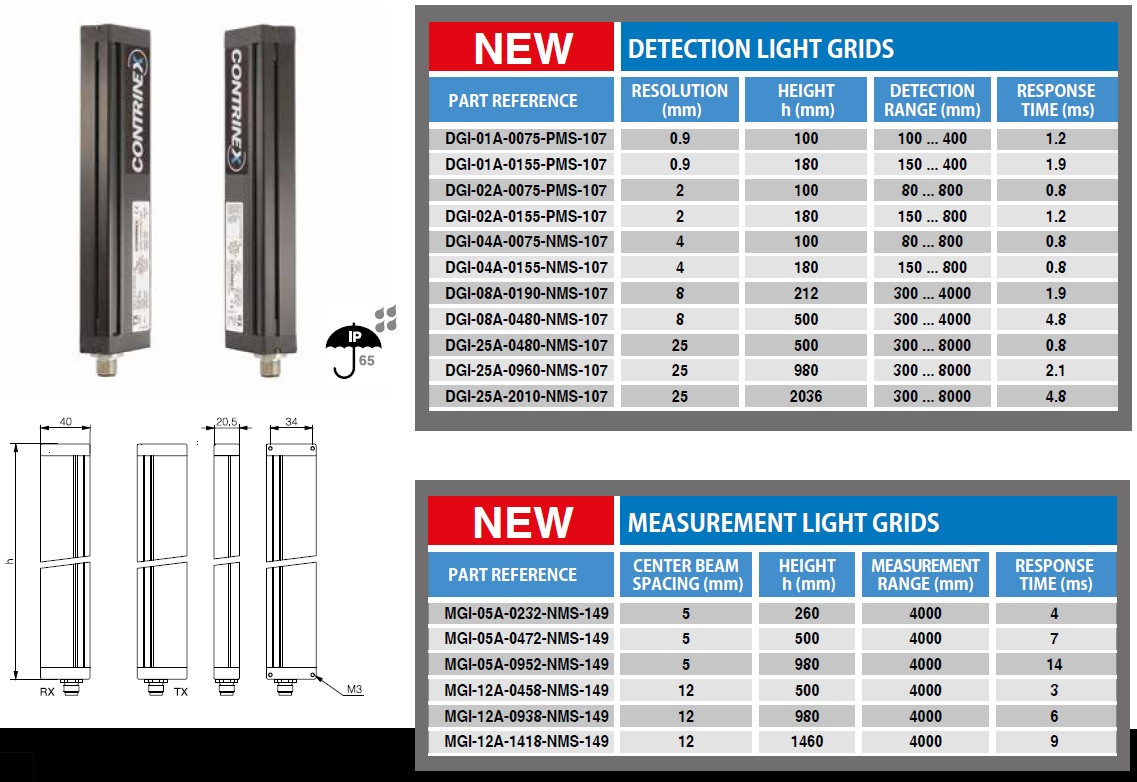

The DGI family of Detection light grids offers detection heights up to 2m, a sensing distance of up to 8m and the capability of detecting objects with diameters as small as 25 mm. Smaller sensing heights are available with a finer resolution, so, for example a 180mm detection height, is available with a resolution of 0.9mm, or a 500mm detection height, is available with a resolution of 8mm.
If the light grids are mounted horizontally, then of course, these detection heights, become detection widths – The term 'detection height' is only used as a term to describe the width of the field of coverage, because these sensors are most commonly used to measure the height of items, typically on a conveyor belt for example.
With response times between 0.8 and 4.8ms depending upon the number of beams (height x resolution), even small objects, moving at high speed can be reliably detected and counted.
Prices start at £371 for a single pair of DGI light grids, and pricing reduces considerably for larger quantities.
Common applications include the production of small parts or foil, injection moulding, packaging equipment and the pharmaceutical industry.
The MGI family of Detection light grids offers detection heights up to 1.46m, a sensing distance of up to 4m and the capability to detect objects with diameters as small as 12 mm. Smaller sensing heights are available with a finer resolution, so, for example a 980mm detection height, is available with a resolution of 5mm.
DIP switches enable the installer to define which end to measure from, or to measure the width of an object, or the width of a hole in an object. Measurements are output as analogue values of 0-10V and 4-20mA.
Prices start at £732 for a single pair of MGI light grids, and pricing reduces considerably for larger quantities.
Potential applications for these keen-eyed, robust sensors are logistics or automated packaging systems, and in harsh environments such as warehouses and the wood and extrusion industries
Find out more at http://tiny.cc/CTX_Grids or watch a YouTube video at https://youtu.be/HgfIWubRaDo
Key advantages:
- Plug-and-play installation
- Small installation space with cross-section: 40 x 20.5mm
DGI series
- Fast, precise detection and counting
- Resolution of 0.9 mm to 25 mm, capable of detecting even the smallest object
- Detection range up to 8000 mm
- Beam height from 75 mm up to 2010 mm
MGI series
- Easy, reliable measurement of position and dimensions
- Center beam spacing 5 mm and 12 mm
- Measurement range up to 4000 mm
- Beam height from 230 mm up to 1420 mm
